FW长城网带规格及重量/

FW长城网带规格及重量

项目描述:
条板加工成格子状,并以直心力骨连接固定

详细介绍

  长城网带长城网带

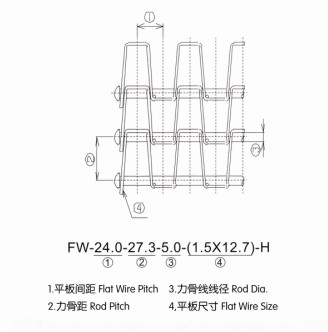

  长城网带 长城网带CAD

  条板加工成格子状,并以直心力骨连接固定。
  The flat wires are arranged in the form of lattice and jointed with the straight rods.Advantages
  1 . 采用齿轮传动,连转稳定。
  The positive sprocket drive ensures stable running.
  2 . 开孔率大,通风性及排水性佳。
  Large open area ensures high air permeability and dehydration capacity.
  3 . 容易洗净。
  The belt can be easily washed.
  4 . 网面平顺运载不稳固制品。
  Because the belt has smooth surface, it can carry
  unstable products.
  5 . 可转向之板式网带,可用于转向型输送机。
  CFW can be used for the curved conveyor.



  一般规格表现方式

   规 格 Specification 重 量 weight(KG/m2)
  FW - 24.0 - 27.3 - 5.0 - (1.5x12.7) - H 17.59
  FW - 18.0 - 27.4 - 5.0 - (1.5x12.7) - H 19.74
  FW - 12.7 - 25.4 - 5.0 - (1.5x12.7) - H 23.89
  FW - 12,7 - 25.4 - 5.0 - (1.5x14.1) - H 26.09
  FW - 25.4 - 25.4 - 5.0 - (1.2x14.1) - H 16.96
  FW - 12.7 - 25.4 - 5.0 - (1.2x14.1) - H 22.01
  FW - 14.0 - 19.05 - 4.0 - (1.2x12.0) - H 19.87
   规 格 Specification 重 量 weight(KG/m2)
  FW - 24.0 - 27.3 - 3.0 - (1.2x9.5) - H 9.06
  FW - 16.0 - 27.4 - 3.0 - (1.2x9.5) - H 11.03
  FW - 15.0 - 27.0 - 3.0 - (1.2x14.1) - C 16.58
  FW - 14.0 - 13.7 - 3.0 - (1.2x9.5) - H 17.21
  FW - 24.0 - 27.3 - 5.0 - (1.5x12.7) - PH 16.01
  CFW - 24.0 - 27.3 - 5.0 - (1.5x12.7) - H 16.01
  CFW - 18.0 - 27.4 - 5.0 - (1.5x12.7) - H 16.95
