乙型网带样式及规格

作者:长城网带厂  来源:长城网带厂  发布时间:2014-04-02 09:43:33

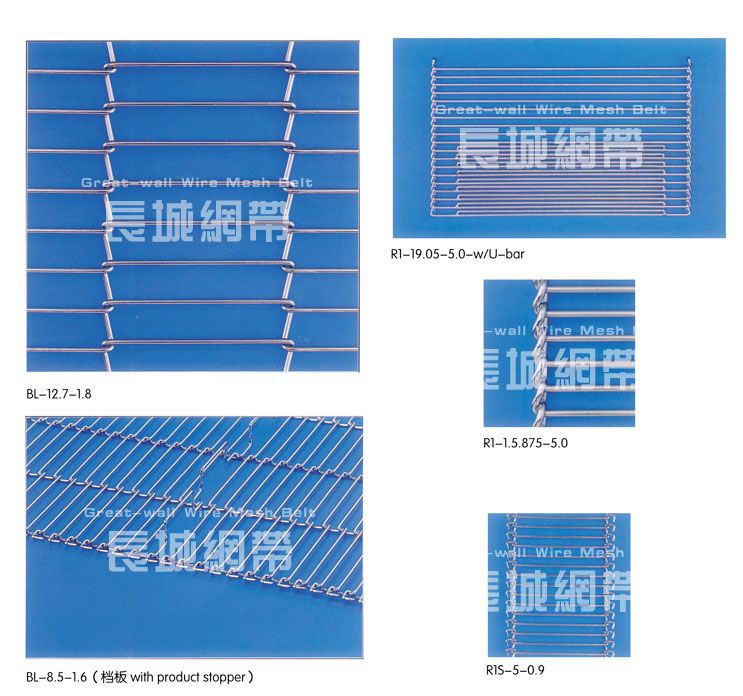

  乙型网带

  乙型网带

  通称为巧克力网带,由连续不断成型的线材编织而成。
  Usually these belts are called Chocolate Conveyor belts
  Whis are made by assenmbling the successively bent wires.


  Advantages
  1.采用齿轮传动,确保正确稳定的运转。
  The sprocket drive ensures positive and stable running.
  2.网带回转直径可调至极小。
  The rotation diameter is small,so that smooth products
  Transfer is ensured.
  3.洗净容易、衍生。
  Easy washing is ensured.
  4.开孔率大,通风性、排水性佳。
  Because of large open area, high air permeability and
  Dehydration capacity aer ensured.

  Standar specification

  节距 (mm) 5 6 7 7 10 13 15 15 18 20 20 20 19
  Pitch

  线径 (mm) 1 1 1 1 2 2 2 2 2 3 3.2 3.5 5
  Wire diameter

  最低节数(mm) 30 30 30 30 30 40 40 50 60 100 130 150 300
  Minimum span

  全幅 (mm) 300~4200
  Overall width
