力骨式网带规格及样式图

作者:长城网带厂  来源:长城网带厂  发布时间:2014-04-02 09:45:04

  力骨式网带

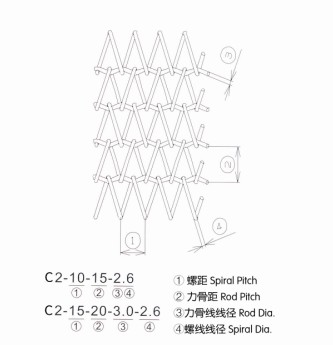

  左旋及右旋之螺线交替组立,并以浪心力骨联结成网。
  The left-wound and right-wound spirals are alternately arranged
  and jointed with the pre-crimped rods.

  Advantages
  1.能在最大范围内使用的网带
  Widest range of application.
  2.构造稳定,不易产生蛇行。
  Stable construction for straight belt running.

  Typical specification(nominal size)
  规格Specification 重量Weight(kg/m2 )
  C2-40-50-6.0-5.0 15.0
  C2-25-30-5.0-5.0 23.7
  C2-30-40-5.0-4.0 12.7
  C2-20-25-5.0-4.0 21.5
  C2-15-20-4.0-4.0 55.4
  C2-20-25-4.0-3.4 14.4
  C2-25-30-4.0-3.2 10.4
  C2-15-20-3.4-3.2 16.0
  C2-20-25-3.4-3.0 10.7
  C2-15-20-3.2-3.0 13.9
  C2-10-15-3.2-3.0 21.9
  C2-15-20-3.0-2.6 10.6

  规格Specification 重量Weight(kg/m2 )
  C2-10-15-2.6-2.6 15.3
  C2-15-20-2.6-2.3 8.0
  C2-10-15-2.6-2.3 12.3
  C2-8-12-2.3-2.3 15.3
  C2-12-18-2.3-2.0 7.4
  C2-8-12-2.3-2.0 12.1
  C2-6-9-2.0-2.0 16.1
  C2-10-15-2.0-1.8 7.2
  C2-6-9-1.8-1.8 12.6
  C2-10-15-1.8-1.6 5.6
  C2-7-10-1.8-1.6 8.7
  C2-5-7-1.6-1.6 12.7

  规格Specification 重量Weight(kg/m2 )
  C2-8-12-1.6-1.4 5.5
  C2-5- 7-1.4-1.4 9.3
  C2-9-13-1.6-1.2 3.9
  C2-6- 9-1.4-1.2 5.6
  C2-4- 6-1.2-1.2 8.5
  C2-6- 9-1.2-1.0 3.8
  C2-4- 6-1.2-1.0 6.2
  C2-3- 4-1.0-1.0 8.6
  C2-4- 6-1.0-0.9 4.7
  C2-3- 4-1.0-0.9 7.2
  C2-4- 5-1.0-0.8 4.3
  C2-3- 4-0.9-0.8 5.5
