产品展示

菱形网带样式及规格

作者:长城网带厂  来源:长城网带厂  发布时间:2014-04-02 09:50:12

  菱形式网带

  菱形网带采用同方向之螺线编织而成。
  Spirals wound in the same direction Are arranger.

  Advantages
  1.价格经济
  Low cost
  2.重量轻
  Light weight.
  3.经由固定间隔改变螺线方向可避免网带蛇行现象
  Creep to one direction can be avoided By changing spiral wounding direction With regular intervals.

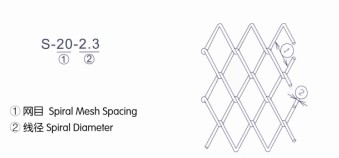

  Typical specification(weight is only for reference)
  规格Specification 重量Weight(kg/m2 )
  S-8-1.6 5.5
  S-8-1.4 4.2
  S-6-1.4 6.3
  S-6-1.2 3.9
  S-5-1.2 6.5
  S-5-1.0 3.3
  S-4-1.0 5.9
  S-4-0.9 4.3
  S-3-0.7 2.8
  S-3-0.6 1.9 Typical specification(weight is only for reference)
  规格Specification 重量Weight(kg/m2 )
  S-25-3.0 6.9
  S-25-2.6 4.7
  S-20-2.6 5.4
  S-20-2.3 4.5
  S-20-2 3.1
  S-15-2 3.4
  S-15-1.8 3.2
  S-15-1.6 2.9
  S-12-1.6 3.3
  S-12-1.4 3.1
  S-10-1.8 5.5
  S-10-1.6 4.2
  S-10-1.4 3.5
