线圈网带规格及样式图

作者:长城网带厂 来源:长城网带厂 时间:2014-04-02

线圈网带规格及样式图

  线圈式网带

  线圈式网带

  俗称[眼镜Link belt]是把钢丝加工成为眼镜状,然后用力骨连结成的构造,扩大[网目]的方法是使用插入环轴或点焊容接。

  Usually this belt is called Eye Link belt.Wires are formed
  Into eye-links and jointed with rods. Mesh opening is
  Increased by inserting collars or by spot welding.

  Advantages
  1.因用链轮驱动,可做确宝、稳定的运行。
  Positive sprocket drive ensures stable running
  2.因表面平滑,可做不稳定制品的搬送。
  Belt has smooth surface and unstable products can be Carried.
  3.容易洗净。
  Wahing is easy
  4.开孔率大,因此通风性、脱水性佳。
  Aperture can be incerased for high air permeability and Hydration capacity.
  5.可运送高速度、重物。
  Reinforcement plate links are made for heavy load and High speed.

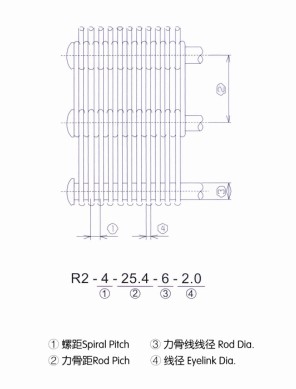

  Standar specification (nominal size) Standar specification (nominal size)
  规格Specification 重量Weight(kg/m2 ) 规格Specification 重量Weight(kg/m2 )
  R2-6-63.5-13.8-3.0 32.9 R2-5.2-38.0-7.0-2.6 29.2
  R2-5.2-63.5-12.0-2.6 32.9 R2-4-38.1-8.0-2.0 26.9
  R2-4.6-50.8-8.0-2.3 24.2 R2-3.2-38.1-6.0-1.6 17.4
  R2-4.0-50.8-10.0-2.0 27.6 R2-2.4-38.1-8.0-1.2 18.3
  R2-3.2-50.8-8.0-1.6 17.1 R2-4-31.75-7.0-2.0 27.7
  R2-5.2-50-6.0-2.6 21.4 R2-2.4-25.4-6.0-2.0 25.5
  R2-4-50-6.0-2.0 18.0 R2-2.4-25.4-5.0-1.2 15.6
  R2-5.2-50-5.0-2.6 18.8 R2-4-25.0-5.0-2.0 22.0
